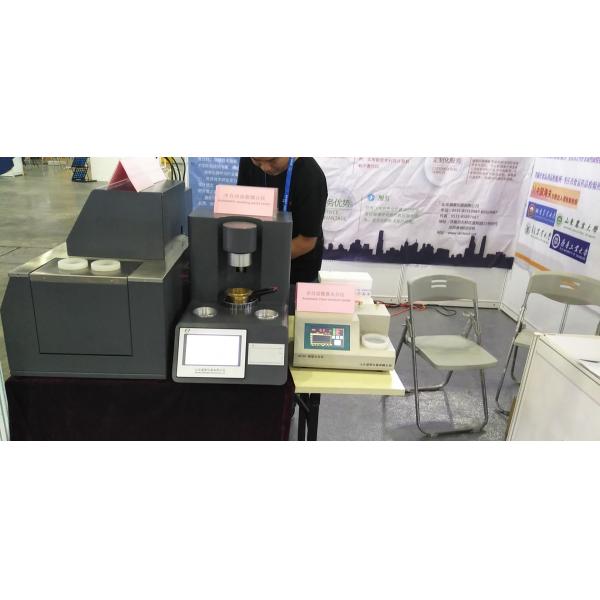

SH0248BS Automatic Cold Filter Point Tester is based on the national standard SH/T 0248, using contemporary advanced technology, integrating mechanical, optical, electronic, and computer technology. It can automatically complete the cold filter point testing of petroleum products. This instrument uses photoelectric detection technology, and an imported compression mechanism cooling system to ensure that the required cooling depth is achieved.
Product Usage:
Used for cold filter point analysis of dark colored petroleum products, crude oil, and other transparent or translucent petroleum products.
Instrument features: embedded system design, imported PT100 temperature sensor, automatic detection throughout the test process; Color touch screen; The instrument automatically tilts and can store test results; Historical data can be viewed; The results are printed on the instrument and mechanically stirred automatically. The experimental results can be exported through a USB flash disk, and stored in a computer for multiple test comparisons.
Standard: SH/T 0248 ASTMD 6371
1. Upgrade to 7-inch TFT color LCD display;
2. Refrigeration method: fully enclosed high-efficiency refrigeration compressor.
3. Test cold trap: 2.
4. Detection method: Imported OMRON photoelectric switch detection
5. After upgrading, historical data can be stored for easy query; At the same time, it can be equipped with a U disk output function.
6.Standard micro printer Automatic measurement Automatic printing
7. After the test is completed, if there is no personnel to operate, the automatic shutdown time of the refrigerator can be arbitrarily set within 0-50min to avoid frequent startup of the compressor and extend the service life of the instrument,
Technical parameters:
Standard: SH/T 0248 ASTMD 6371
Temperature measurement range: - 68~30 ℃; Resolution 0.1 ℃
Pressure measurement range: 0~200.0 KPa; Resolution: 1Pa
Number of test samples: 2 channels
Temperature measuring element: PT100
Detection method: upper mounted photodetector
Refrigeration method: imported cascade compressor refrigeration
Cooling method: air cooling
Printing: 20-column Chinese character dot matrix printing
Display: 128 × 64 Chinese character display
Storage method: Experimental results can be stored in 199 sets of historical data for easy query;
Result output: At the same time, it can be equipped with a U-disk output function, which can be output to the PC terminal for long-term storage
Output Format: The output format of the result USB flash disk is CSV or Excel.
Standard printing: Standard micro printer Automatic measurement Automatic thermal printing
★ Remote upgrade: With TCP network transmission function, remote software upgrade can be performed later (optional)
★ Data management: connectable to the LIMIS system (optional)
Instrument size: 650 * 480 * 620mm Instrument weight: 75kg
Package size: 690 * 520 * 660mm Package weight: 80kg
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Automatic cold filter point tester | set | 1 | |
| 2 | Cold filtration point suction filtration device | set | 1 | |
| 3 | Cold filter point test tube | piece | 2 | |
| 4 | Pipette | piece | 2 | |
| 5 | Suction head assembly | set | 2 | Brass housing, nut, strainer, etc |
| 6 | Plastic tie | piece | some | Length and width: 100mm x2mm |
| 7 | Silicone tube left and right | piece | 2 | |
| 8 | Fuse | piece | 2 | |
| 9 | Power cord | piece | 1 | |
| 10 | Instruction | copy | 1 | |
| 11 | packing list | copy | 1 | |
| 12 | Certificate warranty card | copy | 1 | |
